Wholesale low price Prepainted Galvanized Steel Coil
Wholesale low price Prepainted Galvanized Steel Coil
Wholesale low price Prepainted Galvanized Steel Coil

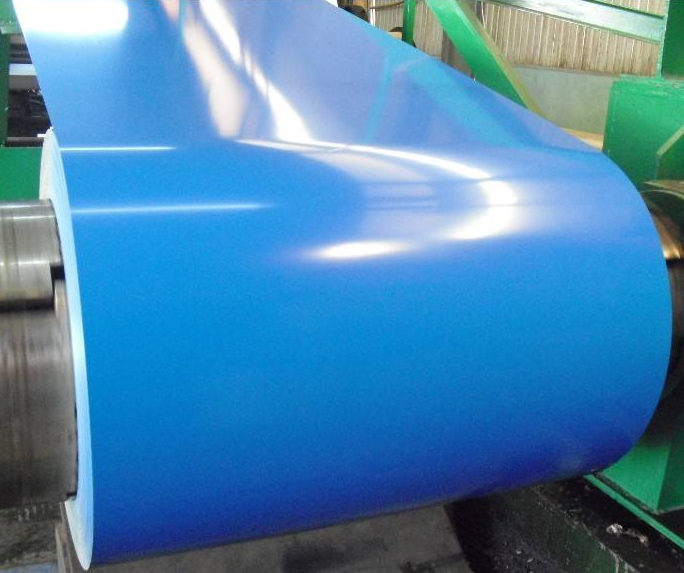

Prepainted Galvanized Steel Coil is a product which is coated with one or several layers of organic coatings on the surface after baking, and then after surface pretreatment (chemical degreasing and chemical conversion). Also because of the various colors of different colors of the organic paint color steel roll plate from this, referred to as color coating. The use of hot-dip galvanized steel strip for the substrate color coated steel strip in addition to zinc coating protection, zinc coating on the organic coating played a covering and protective role, to prevent rust, and the service life is longer than the galvanized strip, about 1.5 times.
Print Product Summary
Henry@chinaluckysteel.com
+86-17753219835
Specification

Specification:


Pre-painted Galvanized steel is a Galvanized steel with a number of paint layers and treatments in a carefully controlled environment in a continuous coil coating line.
Pre-painting can also be done on electrogalvanized coils and cold rolled coils depending on the end-use and application of the steel.

PPGI Steel Coil is better at corrosion resistance. Paint on hot dip galvanized steel make it decaorative and usually used to indoor and outdoor decoration. Service life of PPGI coils can up to 20 years without fading.(Zn 60g, 25um painted in top and 10um painted in back).Production meets the standard of EN10147 DX51D+Z, JIS G3312 CGCC, ASTM A755M A653M.


1.ItemPPGI PPGL Prepainted Galvanized Steel Coil /PPGI Steel Coil PPGI PPGL Prepainted Galvanized Steel Coil,Color coat steel coil
2.StandardASTM A653-2001;JIS G3312-2006;GB-T 12754-2006,etc.
3.Material

SGCC,DX51D,DX52D,SS GRADE33-80,SGCC,

SGCH,SGCD1-SGCD3,SGC340-SGC57,SGCC,DX51D,etc.

4.SpecificationsWidth100mm~3500mm
Thickness0.1mm~3mm
Lengthor as required.
5.ColorWhite,Red,Bule,Yellow,all RAL color.
6.Zinc Coating40g-180g/m2
7.Surface TraetmentPrepainted
8.Price termEx-work,FOB,CIF,CFR,etc.
9.Payment termT/T,L/C,Western Union,etc.
10.MOQ3 Ton
11.Delivery timePrompt delivery, or as order's quantity.
12.Package

Export standard package, suit for all kinds of transport,

or as required.

13.Export to

Singapore,Canada,Indonesia,Korea, USA, UK, Thailand,

Saudi Arabia,Viet Nam, Iran, India, Peru, Ukraine ,Brazil,

South Africa, etc.

14.ContactIf you have any question, please feel free to contact me.



Container Loading Capacity
TypeLengthWidthHeightVolumeMax Weight
20FT GP5.8m2.13m2.18m24-26 CBM25 MT
40FT GP11.8m2.13m2.18m54 CBM25 MT
40FT HP11.8m2.13m2.72m68 CBM26 MT
According to the quantity or volume,you can choose!
FCL(full container load); LCL(less than container load); or Bulk-cargo.




We are a PPGI & PPGL manufacturer/supplier in Shandong, China. Our PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) are available in a variety of specifications.

We could also provide the product life length lasts for decades as customers commanded.


SpecificationDescriptions
Coating WeightUpto 275 gsm (Zinc)
Coil Thickness0.25 to 1.50 mm
Coil Width900 to 1335 mm
Paint SystemPrimers, Epoxy, PU, Polyester / Universal
Top Coat: RMP/SMP/PVDF/SDP
Backer Coat: Epoxy, Polyester and PU
GlossMatt – 35% (+/-5%)
Semi-gloss – 60% (+/-5%)
High gloss > 70%
ProfilesSinusoidal, Trapezoidal, Ribbed, Mangalore Tiled




  • PPGI Coil or Pre Painted Galvanized Sheet Coils are basically zinc coated steel sheets which are further treated with organic coatings and finally paint coating and hence are termed as Pre Painted. Available in all colors on order.



Specifications


Technical StandardASTM DIN GB JIS3312
GradeSGCC SGCD or customer's requirement
TypeCommercial Quality/DQ
Thickness0.13-2.0mm
Width600-1500mm
Top SidePrimer paint+polyester paint coating
Back sidePrimer epoxy
Coil Weight3-8 tons per coil
PackageStandard export package or customized
Hardness>=F
T Bend>=3T
Reverse Impact>=9J
Salt Spray Resistance>=500 hours

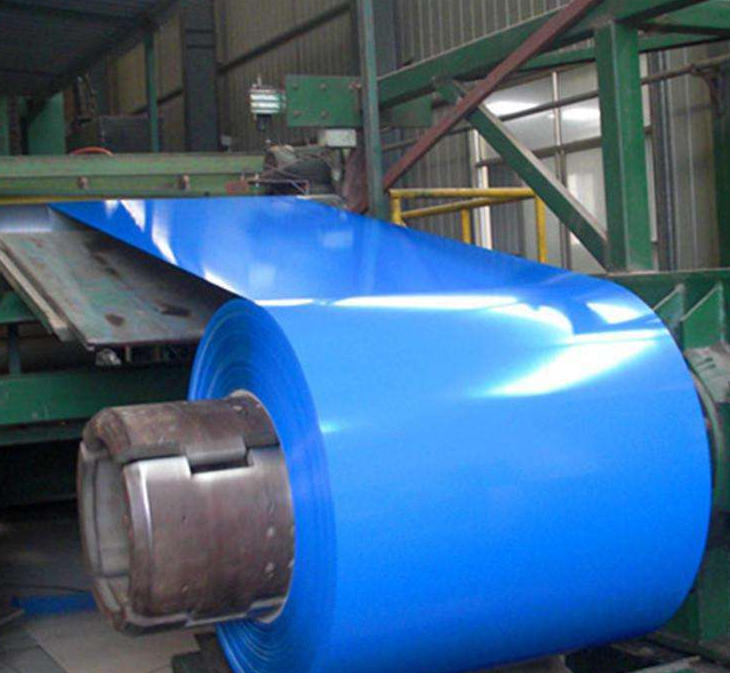

Production Line





Pretreatment Types for Substrate Surface: Normal chemical pretreatment, Chrome free chemical pretreatment. Coating type: Top side two coats, bottom size one coat, Topside two coatings, bottom side two coatings, Topside two coatings, bottom side two coatings(Note: The thickness of bottom side coating is smaller than that of the product type 2/2).



The annual capacity of Color-coated Line is 240,000 tons. We could manufacture top grade steel sheet in building materials plate, automobile plate, electrical appliance plate, solar energy panel, high coating and corrosion resistant plate, MATT plate and plate used for windows and doors.



Coating Process


MCL Process

The process of Prepainted Steel Sheets: Uncoiling→Welding→Inlet Looper→Clearning→Chemical Treatment→Primary Coating→Baking of Primary Coating→Baking of Primary Coating → Cooling of Primary Coating → Finish Coating → Baking of Finish Coating → Cooling of Finish Coating → Outlet Looper → Checking → Stamping → Cutting → Coiling.

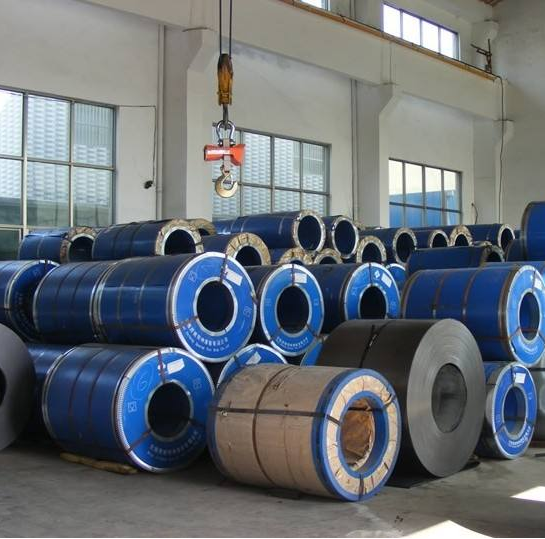

Packing Details


Standard Export Packing:

  • 4 eye bands and 4 circumferential bands in steel

  • Galvanized metal fluted rings on inner and outer edges

  • Galvanized metal and waterproof paper wall protection disk

  • Galvanized metal and waterproof paper around circumference and bore protection

About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.


Containers for producing petroleum and barrels for containing different kinds of chemical raw materials,

industrial troughs, water tanks, military bullet cases, fermentation vats for beer, barns, distribution cabinets,

containers, fertilizer boxes, etc.


Backboards shells of washing machine, refrigerator, air conditioning and dust collector, wardrobes, tables,

night tables, file cabinets, file boxes, book shelves and other furniture.


Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential, the contact points of these bands on the coil edge to be protect with edge protectors.

Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.


Contact us



Packing & Delivery

Packaging Details   according to customer demands

Delivery Time     About 25 days


FAQ

Q1: Are you factory or trading company?


A1: We are factory or manufacturer.

Q2: Can you guarantee your quality?

A2: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation.


Best quality is our principle all the time. You can be assured on our production completely.

Q3:What is your quality guarantee period?

A3:Quality guarantee term is for one year. Special circumstances can extend the shelf life of two years or


three years.You are welcome to contact us at any time.

Q4: How to get your company information?

A4: Find our company China Lucky Steel Co.,Ltd by google Google, Bing, Yahoo, Alibaba.com etc

Q5: What is your MOQ? Can we make a trial order ?

A5: We welcome your trial order 25 T ( one 20 feet container ) . If you want 10 ton , then we can negotiate


the price .But we hope large quantity can reduce your cost .

Q6: .What is your main market ?

A6; Products are mainly exported to Europe, America, Southeast Asia, the Middle East and other countries


and regions.
