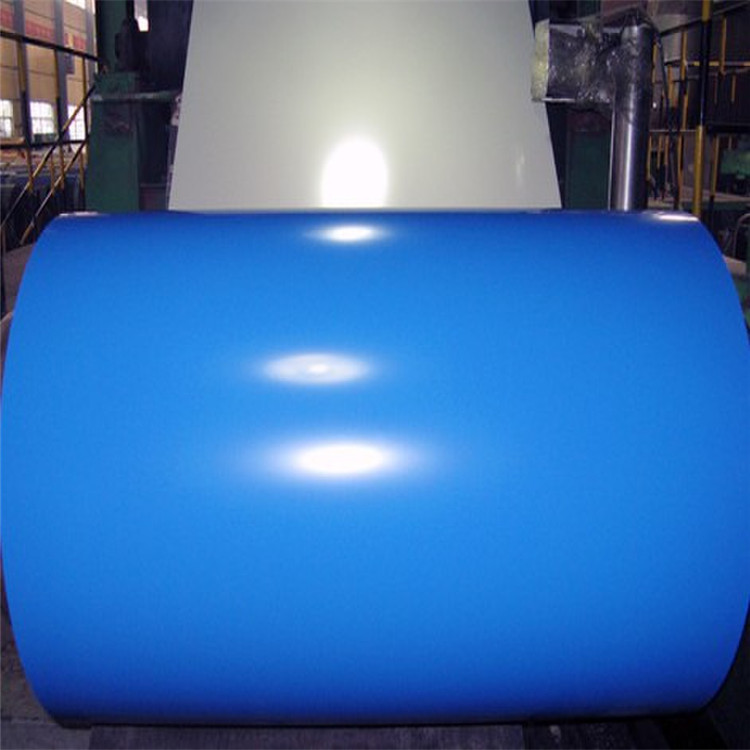

Using Hot Galvanized Steel Coil as the substrate, color coated steel coil is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.
Color coated steel coil/sheet (PPGI & PPGL) is widely used in:
Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
We are a PPGI & PPGL manufacturer/supplier in Shandong, China. Our PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) are available in a variety of specifications.
We could also provide the product life length lasts for decades as customers commanded.
Class G-90 (Z-275) for galvanized; Class G-60 (Z-180) can be used for pre-painted although G-90 (Z-275) is preferred
Regular spangle, chemically treated, lightly oiled with evaporative lubricant for galvanized only coils
Surface Type: Different colors and printed patterns, Different colors and embossed patterns, different colors. Coating Surface Structure of Hot Dip Galvanized Substrate: Small Spangle and Zero Spangle.
|Technical Standard||ASTM DIN GB JIS3312|
|Grade||SGCC SGCD or customer's requirement|
|Top Side||Primer paint+polyester paint coating|
|Back side||Primer epoxy|
|Coil Weight||3-8 tons per coil|
|Package||Standard export package or customized|
|Salt Spray Resistance||>=500 hours|
Pretreatment Types for Substrate Surface: Normal chemical pretreatment, Chrome free chemical pretreatment. Coating type: Top side two coats, bottom size one coat, Topside two coatings, bottom side two coatings, Topside two coatings, bottom side two coatings(Note: The thickness of bottom side coating is smaller than that of the product type 2/2).
The annual capacity of Color-coated Line is 240,000 tons. We could manufacture top grade steel sheet in building materials plate, automobile plate, electrical appliance plate, solar energy panel, high coating and corrosion resistant plate, MATT plate and plate used for windows and doors.
The process of Prepainted Steel Sheets: Uncoiling→Welding→Inlet Looper→Clearning→Chemical Treatment→Primary Coating→Baking of Primary Coating→Baking of Primary Coating → Cooling of Primary Coating → Finish Coating → Baking of Finish Coating → Cooling of Finish Coating → Outlet Looper → Checking → Stamping → Cutting → Coiling.
Standard Export Packing:
4 eye bands and 4 circumferential bands in steel
Galvanized metal fluted rings on inner and outer edges
Galvanized metal and waterproof paper wall protection disk
Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
