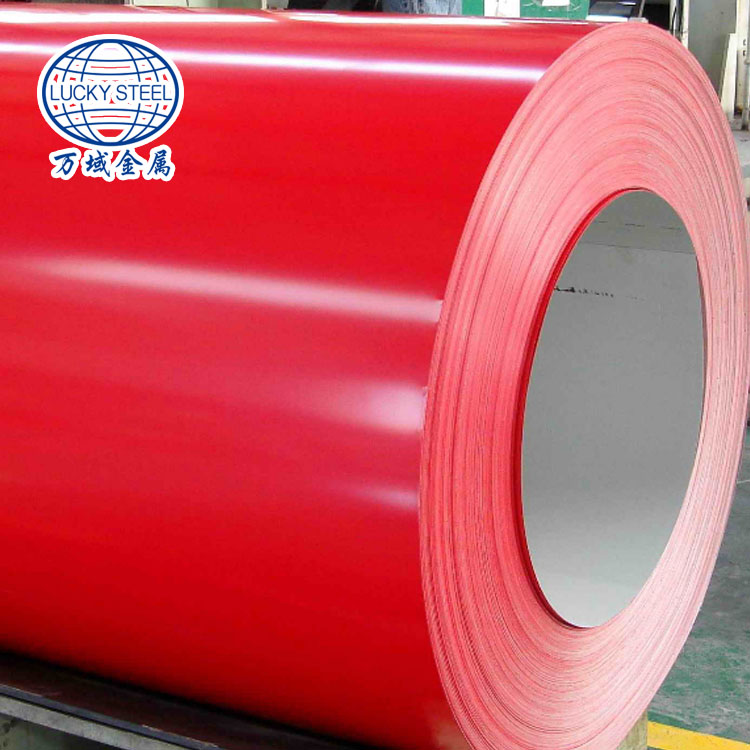

Pre-painted Galvanized steel is a Galvanized steel with a number of paint layers and treatments in a carefully controlled environment in a continuous coil coating line.
Pre-painting can also be done on electrogalvanized coils and cold rolled coils depending on the end-use and application of the steel.
PPGI Steel Coil is better at corrosion resistance. Paint on hot dip galvanized steel make it decaorative and usually used to indoor and outdoor decoration. Service life of PPGI coils can up to 20 years without fading.(Zn 60g, 25um painted in top and 10um painted in back).Production meets the standard of EN10147 DX51D+Z, JIS G3312 CGCC, ASTM A755M A653M.
|1.||Item||PPGI PPGL Prepainted Galvanized Steel Coil /PPGI Steel Coil PPGI PPGL Prepainted Galvanized Steel Coil,Color coat steel coil|
|2.||Standard||ASTM A653-2001;JIS G3312-2006;GB-T 12754-2006,etc.|
|Length||or as required.|
|5.||Color||White,Red,Bule,Yellow,all RAL color.|
|9.||Payment term||T/T,L/C,Western Union,etc.|
|11.||Delivery time||Prompt delivery, or as order's quantity.|
Export standard package, suit for all kinds of transport,
or as required.
Singapore,Canada,Indonesia,Korea, USA, UK, Thailand,
Saudi Arabia,Viet Nam, Iran, India, Peru, Ukraine ,Brazil,
South Africa, etc.
|14.||Contact||If you have any question, please feel free to contact me.|
|Container Loading Capacity|
|20FT GP||5.8m||2.13m||2.18m||24-26 CBM||25 MT|
|40FT GP||11.8m||2.13m||2.18m||54 CBM||25 MT|
|40FT HP||11.8m||2.13m||2.72m||68 CBM||26 MT|
|According to the quantity or volume,you can choose!|
|FCL(full container load); LCL(less than container load); or Bulk-cargo.|
We are a PPGI & PPGL manufacturer/supplier in Shandong, China. Our PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) are available in a variety of specifications.
We could also provide the product life length lasts for decades as customers commanded.
|Coating Weight||Upto 275 gsm (Zinc)|
|Coil Thickness||0.25 to 1.50 mm|
|Coil Width||900 to 1335 mm|
|Paint System||Primers, Epoxy, PU, Polyester / Universal|
Top Coat: RMP/SMP/PVDF/SDP
Backer Coat: Epoxy, Polyester and PU
|Gloss||Matt – 35% (+/-5%)|
Semi-gloss – 60% (+/-5%)
High gloss > 70%
|Profiles||Sinusoidal, Trapezoidal, Ribbed, Mangalore Tiled|
|Technical Standard||ASTM DIN GB JIS3312|
|Grade||SGCC SGCD or customer's requirement|
|Top Side||Primer paint+polyester paint coating|
|Back side||Primer epoxy|
|Coil Weight||3-8 tons per coil|
|Package||Standard export package or customized|
|Salt Spray Resistance||>=500 hours|
Pretreatment Types for Substrate Surface: Normal chemical pretreatment, Chrome free chemical pretreatment. Coating type: Top side two coats, bottom size one coat, Topside two coatings, bottom side two coatings, Topside two coatings, bottom side two coatings(Note: The thickness of bottom side coating is smaller than that of the product type 2/2).
The annual capacity of Color-coated Line is 240,000 tons. We could manufacture top grade steel sheet in building materials plate, automobile plate, electrical appliance plate, solar energy panel, high coating and corrosion resistant plate, MATT plate and plate used for windows and doors.
The process of Prepainted Steel Sheets: Uncoiling→Welding→Inlet Looper→Clearning→Chemical Treatment→Primary Coating→Baking of Primary Coating→Baking of Primary Coating → Cooling of Primary Coating → Finish Coating → Baking of Finish Coating → Cooling of Finish Coating → Outlet Looper → Checking → Stamping → Cutting → Coiling.
Standard Export Packing:
4 eye bands and 4 circumferential bands in steel
Galvanized metal fluted rings on inner and outer edges
Galvanized metal and waterproof paper wall protection disk
Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
Containers for producing petroleum and barrels for containing different kinds of chemical raw materials,
industrial troughs, water tanks, military bullet cases, fermentation vats for beer, barns, distribution cabinets,
containers, fertilizer boxes, etc.
Backboards shells of washing machine, refrigerator, air conditioning and dust collector, wardrobes, tables,
night tables, file cabinets, file boxes, book shelves and other furniture.
Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential, the contact points of these bands on the coil edge to be protect with edge protectors.
Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.
